Overview

Thermal label printers are now used to print labels and wristbands throughout hospitals, laboratories and healthcare facilities. Some healthcare label printers have features such as antimicrobial enclosures designed for use in healthcare environments.

Specification

• Level

  Standard

• Resolution

  8 dots/mm (203DPI)

• Printing Method

  Direct Thermal

• Max. print speed

  203 mm (8")/second

• Max. print width

  54 mm (2.13")

• Max. print length

  2,794 mm (110")

• CPU

  400 MHz, 32 bits, ARM9

• Memory RAM

  64 MB SDRAM

• Memory ROM

  32 MB Flash / 128 MB Flash(factory option)

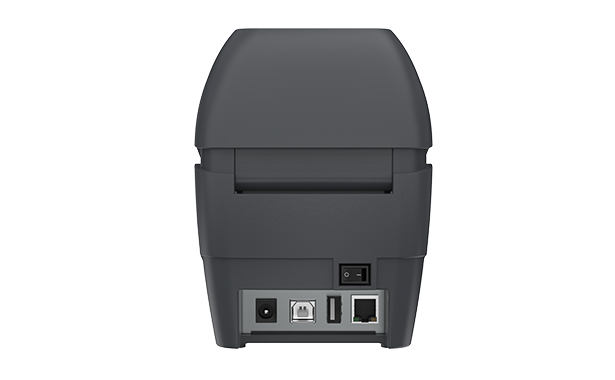

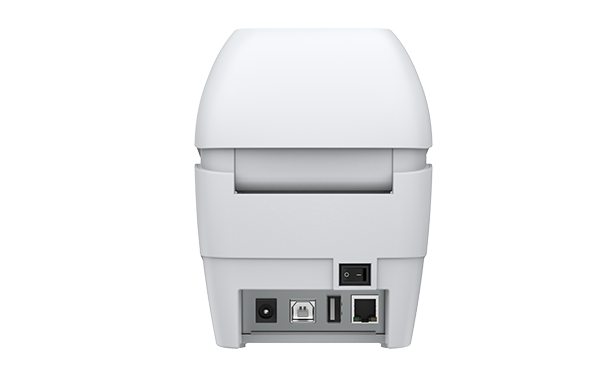

• Interface

  • USB 2.0 High Speed 480Mbps
  • USB Host 2.0, for scanner or PC keyboard
  • Internal Ethernet 10/100Mbps
  • Internal Bluetooth 4.0 (factory option)

• Real Time Clock

  N/A

• Buzzer

  N/A

• Dealer options

  Guillotine cutter (full cut and partial cut)

• Sensors

  Head open sensor, Reflective sensor (moveable), Transmissive sensor (Fixed), Front-Reflective sensor

• Power

  External universal switching power supply
  Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W

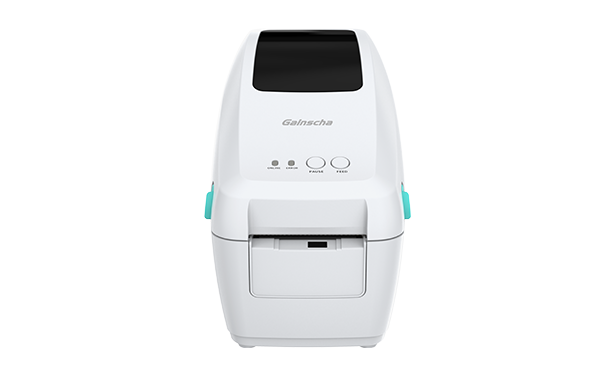

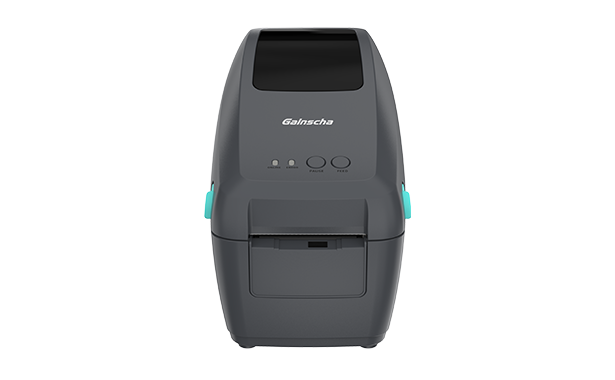

• User Interface

  • 1 power switch
  • 2 buttons (Feed & Pause)
  • 2 LEDs (Online, Error)

• Internal fonts

  • 8 alpha-numeric bitmap fonts
  • True type font engine (need to download scalable font file)

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCode, Aztec Code, Data Matrix

• Rotation

  Font and barcode support 0, 90, 180, 270 degree rotation

• Printer language

  Compatible to TSPL, EPL, ZPL, ZPL II, DPL

• Media type

  Continuous, die-cut, black mark, fan-fold, notched

• Media width

  18 ~ 65 mm (0.7"~2.5")

• Media thickness

  0.06 ~ 0.19mm(2.36 ~ 7.48 mil )

• Media core diameter

  25.4 mm (1'')

• Label roll capacity

  127 mm (5") OD

• Label length

  5~2,794 mm (0.2''~110'')

• Physical dimension

  129mm(W)x165.3mm(H)x244.3mm(D)

• Net Weight

  1.35kg

• Enclosure

  ABS plastic

• Ribbon

  N/A

• Ribbon width

  N/A

• Environment condition

  Operation: 5~40°C, 25~85% non-condensing
  Storage: -40~60°C, 10~90% non-condensing

• Environment concern

  Comply with RoHS, REACH, WEEE

• Accessories

  • Driver and software CD
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply

Operation film
