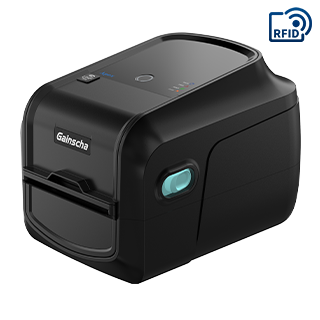

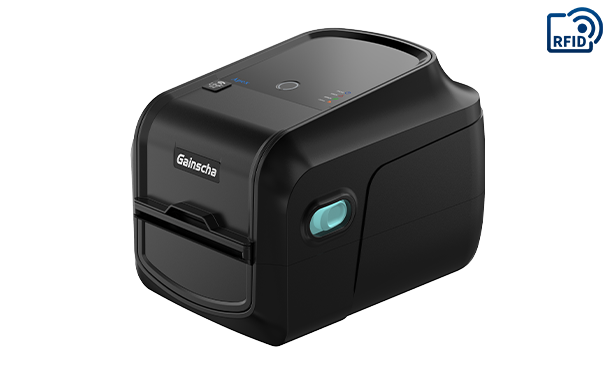

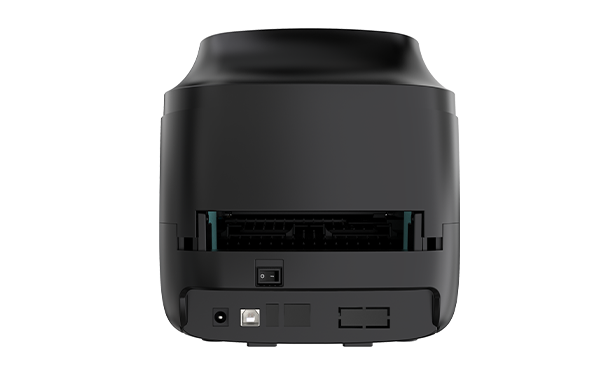

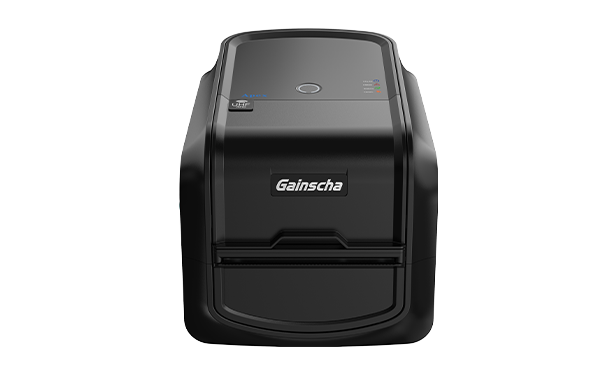

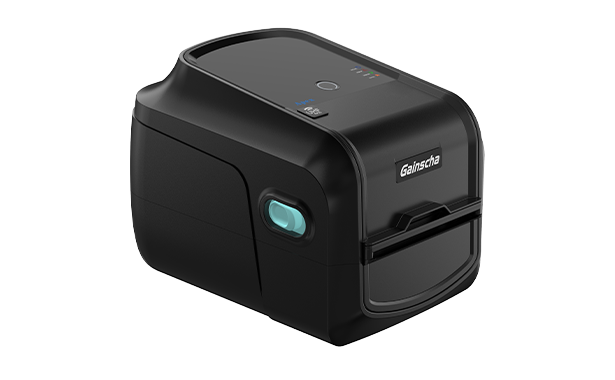

4 Inch Desktop Barcode Printer GA-2408TE

Apex Series

4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE
4 Inch Desktop Barcode Printer GA-2408TE

Product Features

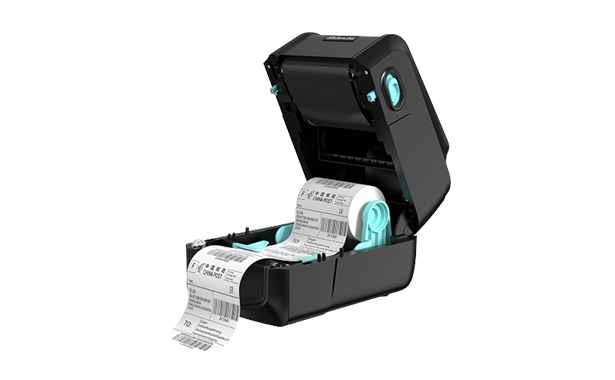

User-friendly clamshell design

Protect the top cover from falling

Support simultaneous printing and encoding of RFID labels, no need to rewind labels, simplifying the printing process

Support print and encode RFID labels with a minimum pitch of 15mm and supports thick on-metallabel printing less than 1.3mm

Support RFID tags, labels and flexible anti-metallabel

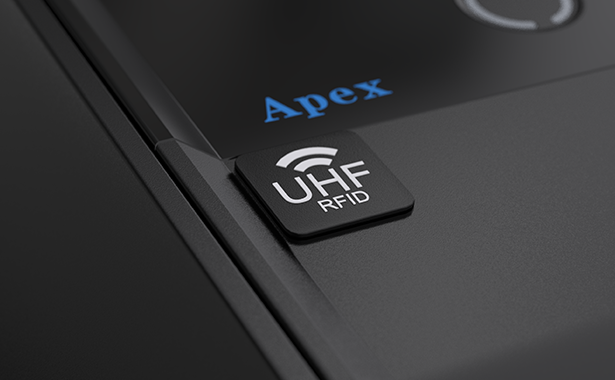

  RFID Specification

Support Alien, NXP, Impinj chip tags

Label inlay On-Pitch gap minimum 15mm(0.625”

Built-in counter to track the correct and wrong label

Support RFID password to Lock/Unlock

Bad label auto remarked during printing, support re-writing label times

Compatible with RFID industry printing command

RFID standard protocol UHF EPC Class1 Gen2/ISO18000-6C

Support USB and network bi-directional communication, to get printer real-time status

Application Industries

  • Manufacturing

    Manufacturing

  • Warehousing & Distribution

    Warehousing & Distribution

Specification

  • Resolution

    GA-2408TE: 8 dots/mm (203DPI)
    GA-3406TE: 12 dots/mm (300DPI)

  • Printing Method

    Thermal Transfer & Direct Thermal

  • Max. Print Speed

    GA-2408TE: 203mm(8")/second
    GA-3406TE: 152mm(6")/second

  • Max. Print Width

    GA-2408TE: 104mm (4.09")
    GA-3406TE: 108mm (4.25")

  • Max. Print Length

    GA-2408TE: 15,000mm (600")
    GA-3406TE: 6800mm (267.7")

  • CPU

    500 MHZ, 32 bits, COTEXT-M7

  • Memory RAM

    8 MB SDRAM

  • Memory ROM

    16 MB Flash

  • Interface

    • USB 2.0 High Speed 480Mbps
    • Internal Bluetooth 4.2 (factory option)
    • Internal Wi-Fi (factory option)

  • Sensors

    Lid sensor, ribbon sensor, reflective sensor (mobile), penetrating sensor

  • Power

    Externalvoltage automatic switching power supply
    Input:AC100-240V,2.5A,50-60Hz.0utput: DC 24V,2.5A,60W

  • User Interface

    • 1 power switch
    • 1 buttons(Feed)
    • 5 LEDs(Online blue light, Error red light, Ribbon green light,Press-key white, Communication orange light, Press-key white light )

  • Internal Fonts

    • 8 alpha-numeric bitmap fonts
    • True type font engine (need to download scalable font file)

  • 1D Barcode

    Code11,Code 39,Code 93,Code 128 (subsets A, B,C),UPC-A, UPC-EUCC-128,Codabar, EAN/JAN-8,EAN/JAN-13, Interleaved 2 of 5

  • 2D Barcode

    QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCodeAztec Code, Data Matrix

  • Rotation

    Font and barcode support 0, 90, 180, 270 degree rotation

  • Printer Language

    Compatible to TSPL, ZPL, ZPL II

  • Media Type

    Continuous, die-cut, black mark, fan-fold, notched (outside wound)

  • Media Width

    20~118 mm (0.7" ~ 4.6")

  • Media Thickness

    0.06~1.3mm

  • Media Core Diameter

    25.4 mm (1")

  • Label Roll Capacity

    127 mm (5") OD

  • Physical Dimension

    280mm(L) x 190mm(W) x 198.3mm(H)

  • Net Weight

    2.7kg

  • Enclosure

    Double-layer ABS plastic

  • Ribbon

    300 meters long, max. OD 67 mm, 1" core (ink coated outside)

  • Ribbon Width

    30~110mm (1.18"~4.3")

  • Environment Condition

    Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
    Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

  • Environmental Concern

    Comply with RoHS, REACH, WEEE
