Direct thermal & thermal transfer dual print modes for flexible media adaption
Built-in standard Ethernet port; Bluetooth & Wi-Fi available as options
Achieve simultaneous print output and RFID data encoding, eliminating the need for label rewinding
Works with RFID labels at minimum 15mm pitch and flexible anti-metal labels ≤1.3mm
Support Alien, NXP, Impinj chip tags
Label inlay On-Pitch gap minimum 15mm (0.625")
Built-in counter to track the correct and wrong label
Support RFID password to Lock/Unlock
Bad label auto remarked during printing, support re-writing label times
Compatible with RFID industry printing command
RFID standard protocol UHF EPC Class1 Gen2/ISO18000-6C
Support USB and network bi-directional communication, to get printer real-time status
Health Сare
Manufacturing
Warehousing & Distribution
Resolution
GA-2408TR: 8 dots/mm (203DPI)
GA-3406TR: 12 dots/mm (300DPI)
Printing Method
Thermal Transfer & Direct Thermal
Max. Print Speed
GA-2408TR: 203mm(8")/second
GA-3406TR: 152mm(6")/second
Max. Print Width
GA-2408TR: 104mm (4.09")
GA-3406TR: 108mm (4.25")
Max. Print Length
GA-2408TR: 15,000mm (600")
GA-3406TR: 6800mm (267.7")
CPU
500 MHZ, 32 bits, COTEXT-M7

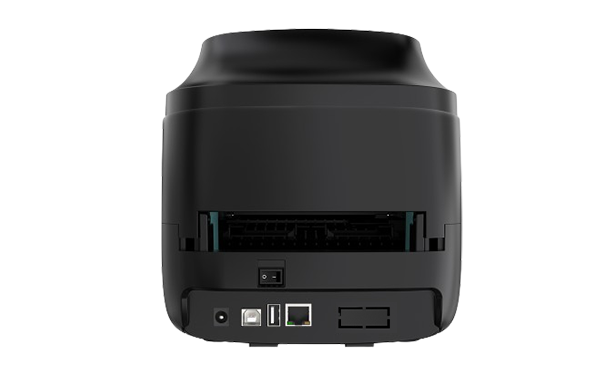

Interface
• USB 2.0 High Speed 480Mbps
• USB Host 2.0, for scanner or PC keyboard
• Ethernet 10/100Mbps
• Internal Bluetooth 4.2+Wi-Fi 2.4G (distributor option)
• Internal Bluetooth 4.2 (distributor option)
Sensors
Lid sensor, ribbon sensor, reflective sensor (mobile), penetrating sensor
Power
Externalvoltage automatic switching power supply
Input:AC100-240V, 2.5A, 50-60Hz; 0utput: DC 24V, 2.5A, 60W

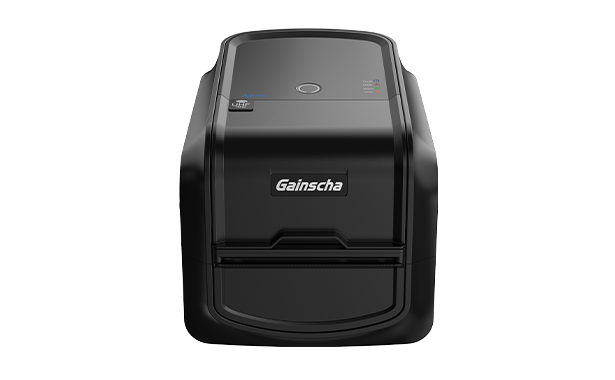

User Interface
• 1 power switch
• 1 buttons(Feed)
• 5 LEDs(Online blue light, Error red light, Ribbon green light, Communication orange light, Press-key white light )
Internal Fonts
• 8 alpha-numeric bitmap fonts
• True type font engine (need to download scalable font file)
1D Barcode
Code11,Code 39,Code 93,Code 128 (subsets A, B,C),UPC-A, UPC-EUCC-128,Codabar, EAN/JAN-8,EAN/JAN-13, Interleaved 2 of 5
2D Barcode
QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCodeAztec Code, Data Matrix
Rotation
Font and barcode support 0, 90, 180, 270 degree rotation
Printer Language
Compatible to TSPL, ZPL, ZPL II

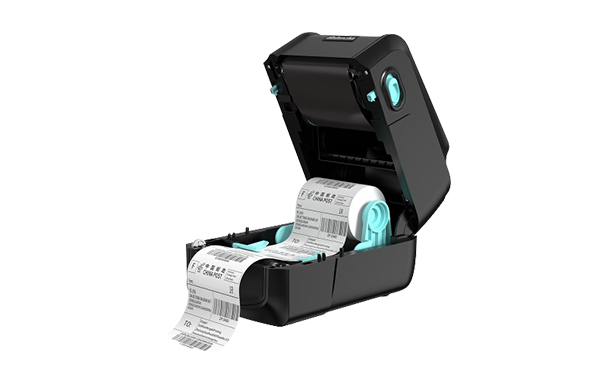

Media Type
Continuous, die-cut, black mark, fan-fold
Media Width
20~118 mm (0.7" ~ 4.6")
Media Thickness
0.06~1.3mm
Media Core Diameter
25.4 mm (1")
Label Roll Capacity
127 mm (5") OD
Physical Dimension
280mm(L) x 190mm(W) x 198.3mm(H)
Net Weight
2.7kg
Enclosure
Double-layer ABS plastic
Ribbon
300 meters long, max. OD 67 mm, 1" core (ink coated outside)
Ribbon Width
30~110mm (1.18"~4.3")
Environment Condition
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Environmental Concern
Comply with RoHS, REACH, WEEE
