GA-G3 CUBE Printer | High-Res & Fast Thermal Printing-Gainscha

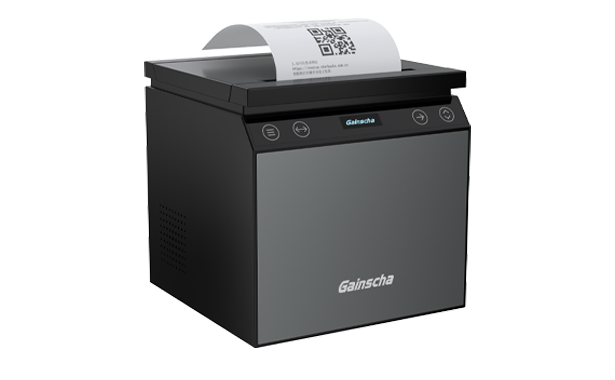

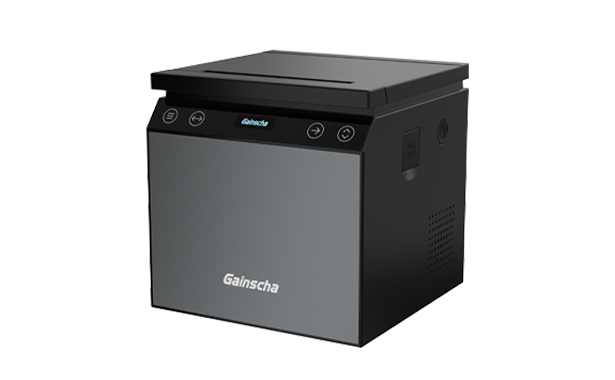

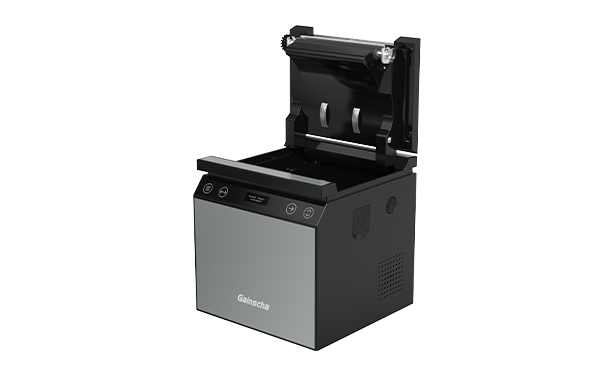

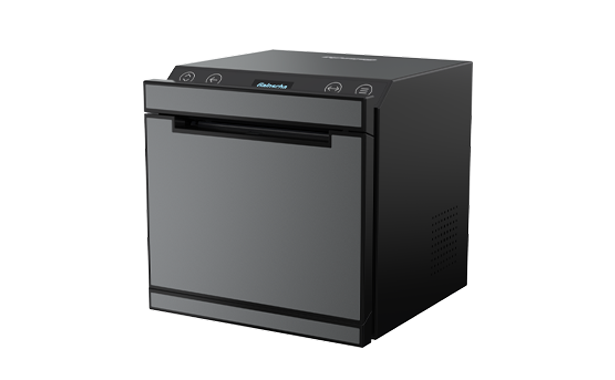

80mm Thermal Receipt Printer GA-G3

Thermal receipt printer

Product Features

• Front-exit and upper-exit with auto cutter, cube design
• 300dpi print resolution to set new industry standard
• Support 50% more content printed compared with 203dpi resolution printing in the same length page
• Help reduce paper usage by 30% at least Fast Transaction Time
• Receipt printing speed at 200mm/sec max
• Various interface available (Serial/USB Ethernet/RJ11 cash drawer/ Bluetooth / 4G network)

Application Industries

Medical Insurance
Retail
Entertainment And Service Industry

Consult now

Overview Specification Download Operation film FAQ Contact

Overview

Specification

Printer Model

GA-G3
Print Method

Direct Thermal
Emulation

EPSON / Star
Paper width

79.5 ±0.5 x 80mm
57.5±0.5 x 80mm
Print width

72mm
Resolution

12dots/mm(300DPI)
Paper roll

85mm
Print speed

200mm/sec.
Paper thicknes

0.06~0.08 mm
Interface

USB 2.0+RS-232
Ethernet+RJ11 CashDrawer
Bluetooth (optional)
Wi-Fi (optional)
4G (optional)
Data buffer

Buffer: 128K bytes (TBD)
SRAM: 192K (TBD)
ROM: 512k bytes (TBD)
Flash: 16M bytes (TBD)
Barcode type

1D: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13,CODE39, ITF, CODABAR, CODE93,CODE128
2D: QRCODE
Power supply

External universal switching power supply
Input:AC 100-240V, 1A, 50-60Hz，Output:DC 24V, 2.5A, 60W
Cash drawer

24V/1A
Print head life

150 km print length or 100 million pulses.
Auto cutter life

1500000 times
Operating system

/
Net Weight

1.5KG
Dimension

130(W)x130(H)x130(D)mm
