Specification

• MODEL

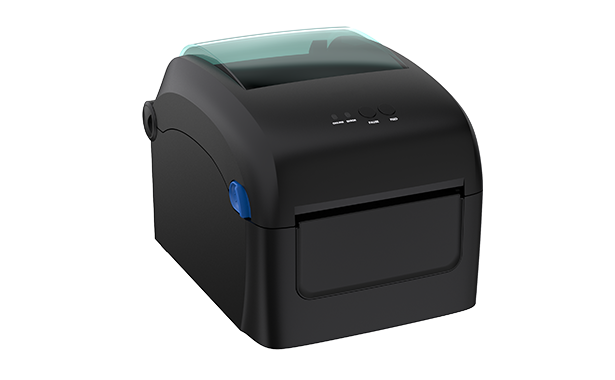

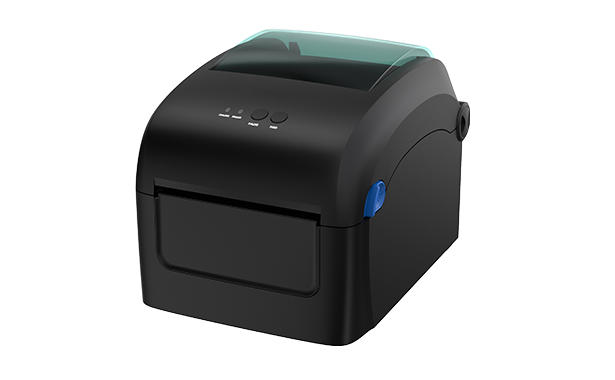

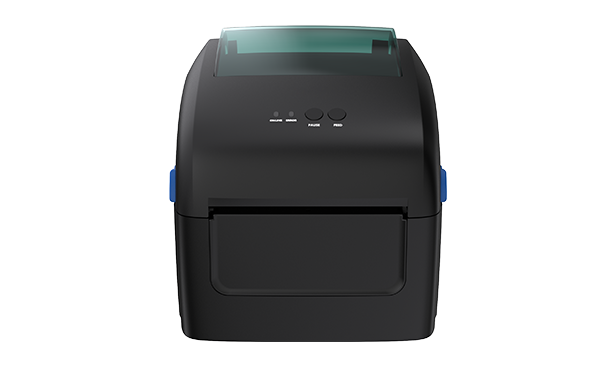

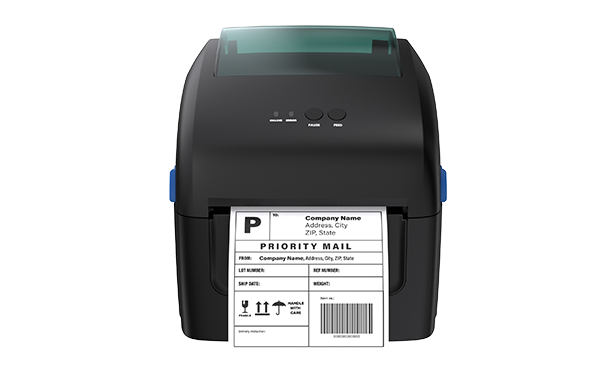

  GV24D

• Printing Method

  Direct Thermal

• Resolution

  8 dots/mm(203DPI)

• Print Speed

  203.2mm(8")/second

• Print Width

  104 mm(4.1")

• Interface

  ·USB 2.0 High Speed 480Mbps
  ·USB Host 2.0, for scanner or PC keyboard
  ·Ethernet 10/100Mbps
  ·Internal Bluetooth 4.2 (Factory option)
  ·Internal Wi-Fi (Factory option)

• Memory RAM

  64 MB SDRAM

• Memory ROM

  32 MB Flash

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCode, Aztec Code, Data Matrix

• User Interface

  1 power switch, 2 buttons (Feed & Pause)
  2 LEDs (Online, Error)

• Sensors

  Head open sensor, Reflective sensor (Moveable)
  Transmissive sensor (Moveable)

• Label Roll Capacity

  127mm (5")OD

• Printer Language

  Compatible to TSPL, EPL, EPL 2, ZPL, ZPL II, DPL

• Media Type

  Continuous, die-cut, black mark, fan-fold, notched (Outside wound)

• Dimension

  245mm（L）*186mm（W）*178mm（H）

• Net Weight

  1.56kg
