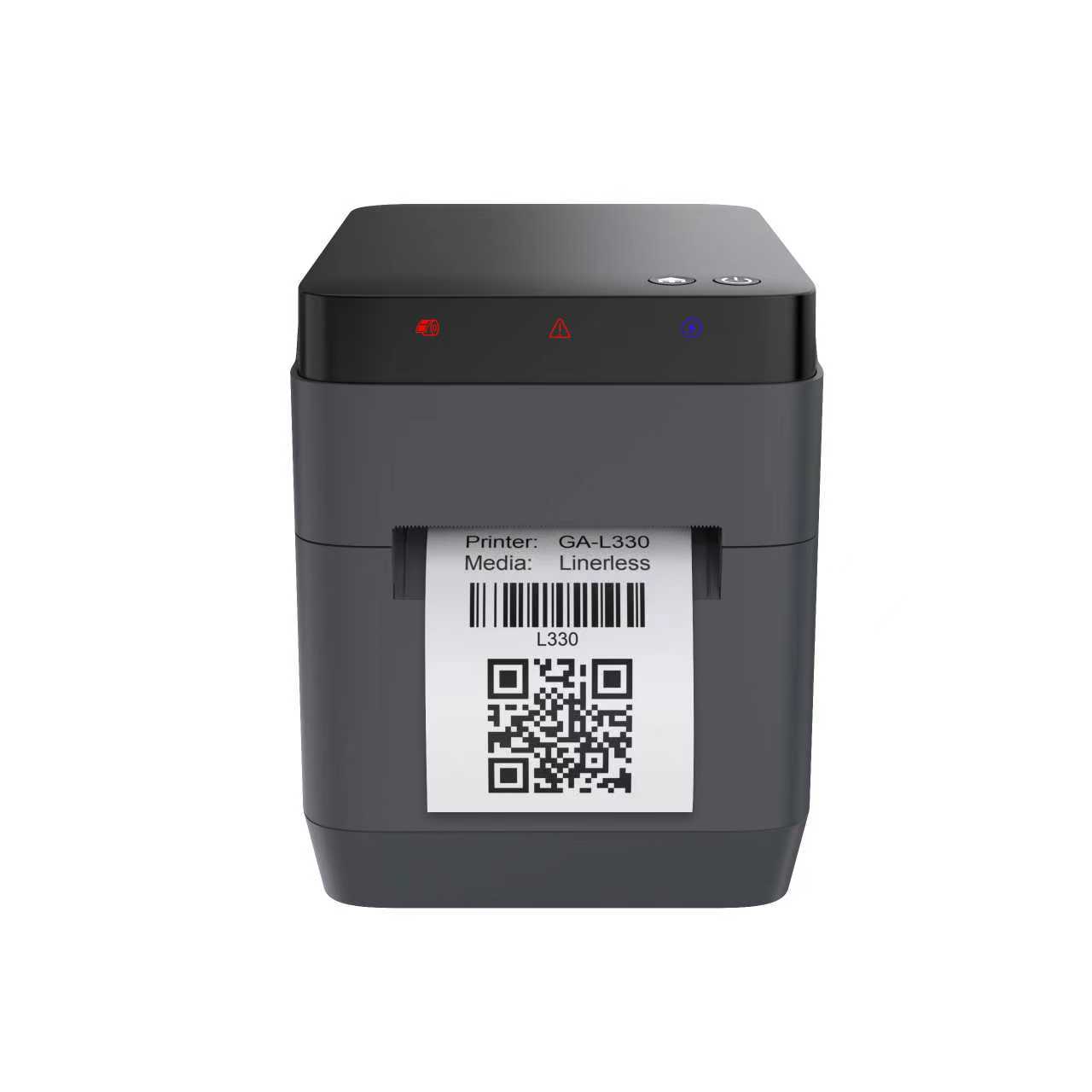

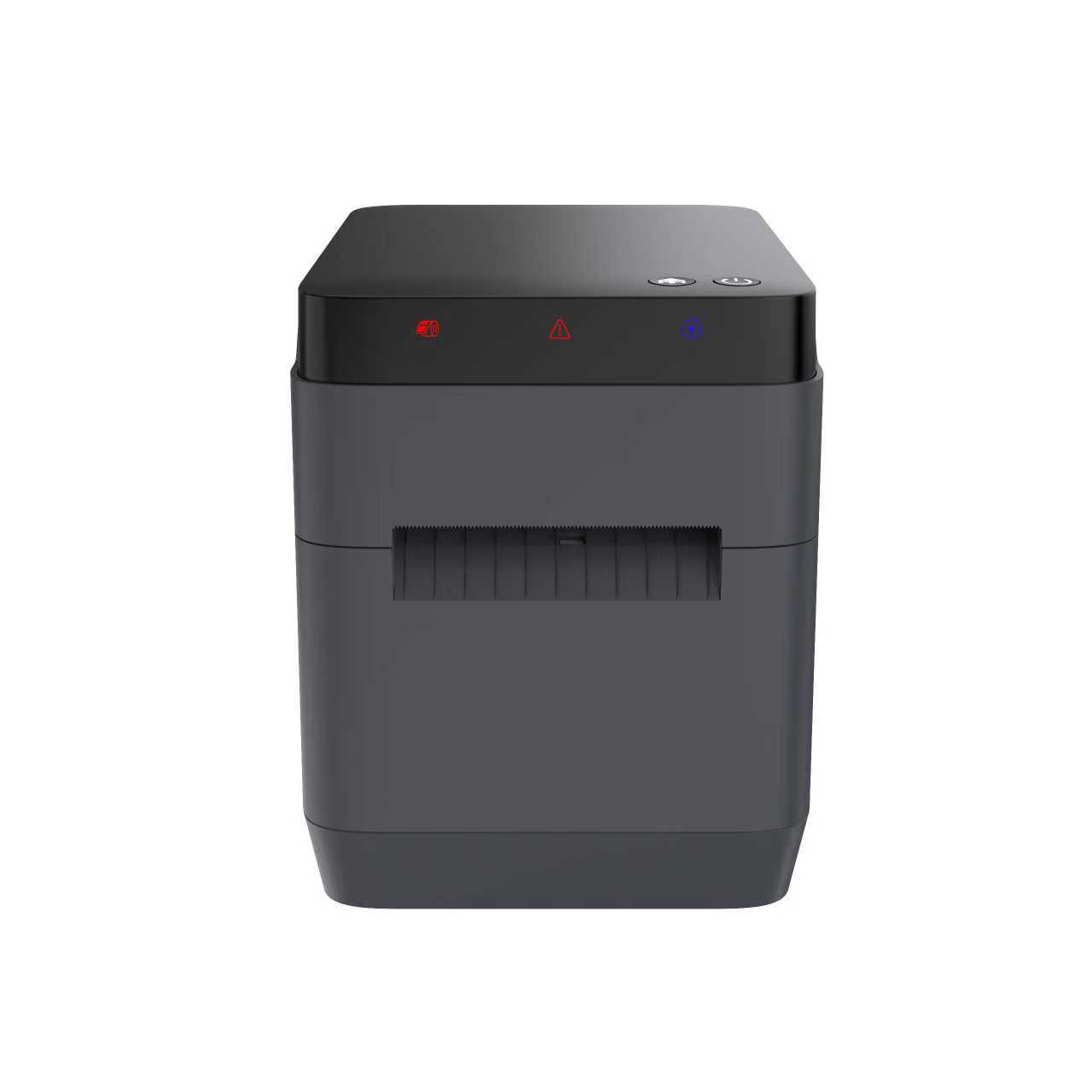

3 Inch Desktop Direct Thermal Barcode Printer

Linerless Series

Built for flexibility, it prints on linerless, die-cut and continous paper roll.

Ideal for item tags, takeaway, shelf, package labels used in restaurant, retail store and warehouse.

Front-exit design supports desktop or shelf installation for versatile applications.

Work with paper width from 20 to 80mm, allow user variable length printing.

Easy toolless replacement of TPH, platen roller and auto cutter.

Users can print the pre-stored labels by simply pressing the printer's multifunction button.

Consult now

Specification Download Operation film FAQ Contact

MODEL

GA-L330
Printing Method

Direct Thermal
Resolution

203DPI
Print Speed

180mm/sec
Print Width

79.5±0.5 x 80mm
57.5±0.5 x 80mm
Paper Output

Front exit
Interface

USB 2.0 + RS-232 + Ethernet + RJ11 CashDrawer
Wi-Fi (Optional)
Bluetooth (Optional)
Memory RAM

32 MB SDRAM
Memory ROM

16 MB Flash
1D Barcode

CODE128 / EAN128 / ITF / CODE39 / CODE39C / CODE39S / CODE93 / EAN13 / EAN13+2 EAN13+5 / EAN8 / EAN8+2 / EAN8+5 / CODABAR / POSTNET / UPC-A/UPCA+2/UPCA+5 UPCE / UPCE+2 / UPCE+5 / MSI / MSIC / PLESSEY / ITF14 / EAN14
2D Barcode

QR Code, PDF417, Data Matrix
User Interface

1 Feed switch 3 LEDs (Online, Error, Power)
Sensors

Head open sensor, Reflective sensor (moveable)，
Transmissive sensor (moveable)
Label Roll Capacity

105mm (4.13")OD
Emulation

Compatible to TSPL, ESC/POS
Dimension

210mm（L）*142mm（W）*173mm（H）
