Specification

• Level

  Standard

• Resolution

  GA-2408T: 8 dots/mm (203DPI)
  GA-3406T: 12 dots/mm (300DPI)

• Printing Method

  Thermal Transfer & Direct Thermal

• Max. Print Speed

  GA-2408T: 203mm(8")/second
  GA-3406T: 152mm(6")/second

• Max. Print Width

  GA-2408T: 104 mm (4.09")
  GA-3406T: 106.7 mm (4.2")

• Max. Print Length

  GA-2408T: 15,000 mm (600")
  GA-3406T: 6800 mm (267.7")

• CPU

  400 MHz, 32 bits, ARM9

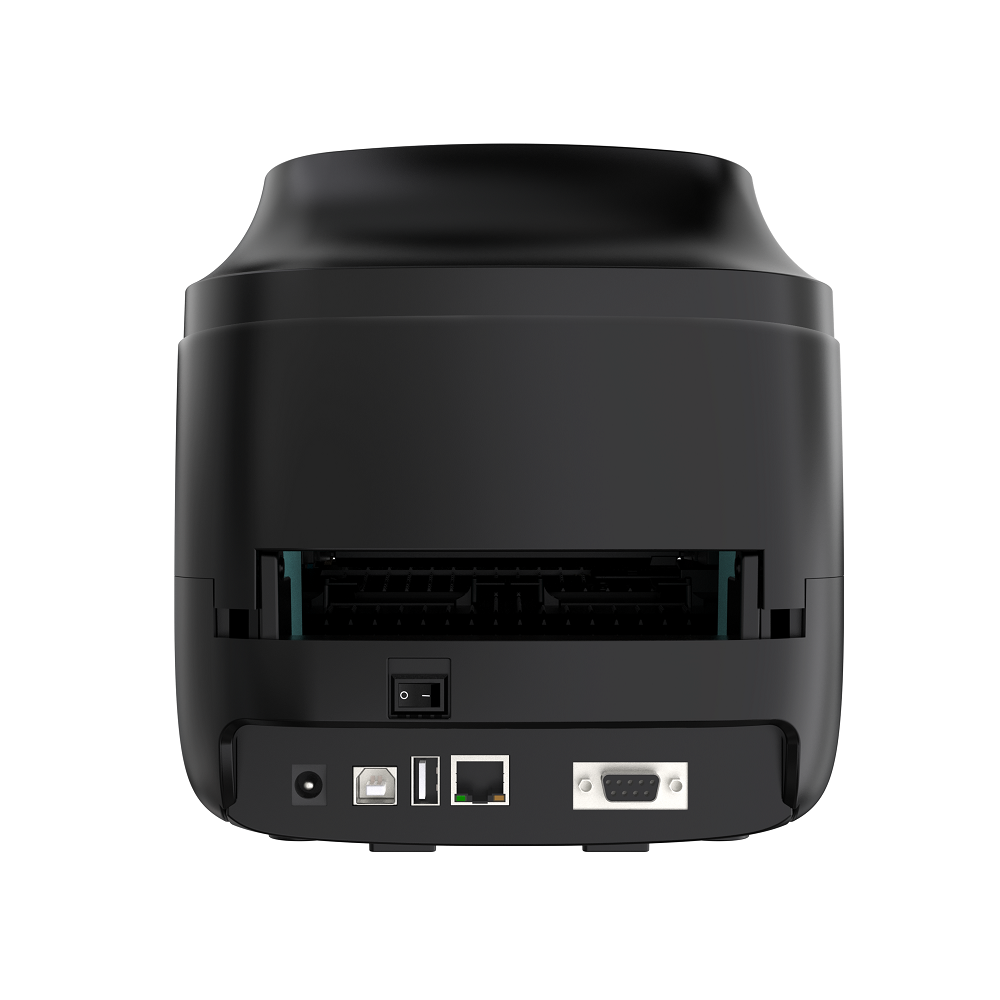

• Interface

  • USB 2.0 High Speed 480Mbps
  • USB Host 2.0,for scanner or PC keyboard
  • Ethernet 10/100Mbps
  • RS-232
  • Internal Bluetooth 4.2 frequency (factory option)
  • Internal WiFi (factory option)

• Real Time Clock

  Optional

• Buzzer

  Standard

• Sensors

  • Head open sensor
  • Ribbon out sensor
  • Reflective sensor (moveable)
  • Transmissive sensor (moveable)

• Power

  External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W

• User Interface

  • 1 power switch
  • 1 button (Feed)
  • 5 LEDs (Online, Error, Ribbon, Wi-Fi/Bluetooth, Communication status)

• Internal Fonts

  • 8 alpha-numeric bitmap fonts
  • True type font engine (need to download scalable font file)

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix

• Rotation

  Font and barcode support 0, 90, 180, 270 degree rotation

• Printer Language

  Compatible to TSPL, EPL, EPL 2, ZPL, ZPL II, DPL

• Media Type

  Continuous, die-cut, black mark, fan-fold(outside wound), Linerless Label

• Media Width

  20~118 mm (0.7" ~ 4.6")

• Media Thickness

  0.06~0.254mm (2.36 ~ 10 mil)

• Media Core Diameter

  25mm~40mm(1"~1.57")

• Label Roll Capacity

  127 mm (5") OD

• Physical Dimension

  280mm(L) x 190mm(W) x 198.3mm(H)

• Net Weight

  2.7kg

• Enclosure

  Clamshell with double-walled plastic

• Ribbon

  300 meters long, max. OD 67 mm, 1" core (ink coated outside)

• Ribbon Width

  30~110mm (1.18"~4.3")

• Safety Regulation

  FCC Class A，CE Class A，CCC，BIS，CB

• Environment Condition

  Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
  Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

• Environmental Concern

  Comply with RoHS, REACH, WEEE
