Specification

• Level

  Standard

• Resolution

  GS-2406T PLUS: 8dots/mm(203DPI)
  GS-3405T PLUS: 12dots/mm(300DPI)

• Printing Method

  Thermal Transfer & Direct Thermal

• Max. print speed

  GS-2406T PLUS: 152mm(6")/second
  GS-3405T PLUS: 127mm(5")/second

• Max. print width

  GS-2406T PLUS: 104 mm (4.1")
  GS-3405T PLUS: 108.4 mm (4.27")

• Max. print length

  GS-2406T PLUS: 2，794 mm (110")
  GS-3405T PLUS: 1,016 mm (40")

• CPU

  400 MHZ, 32 bits，ARM9

• Memory RAM

  64 MB SDRAM / 128 MB SDRAM(factory option)

• Memory ROM

  32 MB Flash Memory / 128 MB Flash Memory(factory option)

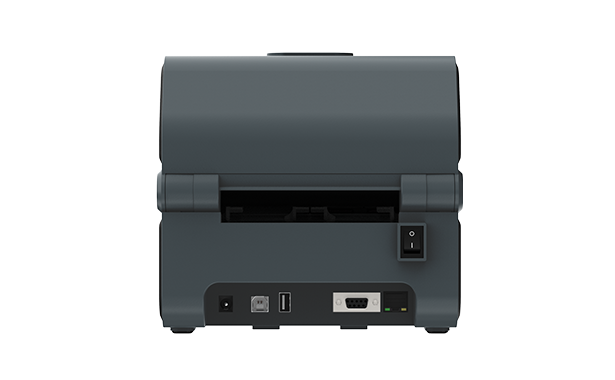

• Interface

  • USB 2.0 High Speed 480Mbps
  • USB Host 2.0, for scanner or PC keyboard
  • RS-232 (factory option)
  • Internal Ethernet 10/100Mbps (factory option)
  • Internal Bluetooth 4.0 (factory option)
  • Internal WiFi (factory option)

• Real Time Clock

  Optional

• Buzzer

  Optional

• Dealer options

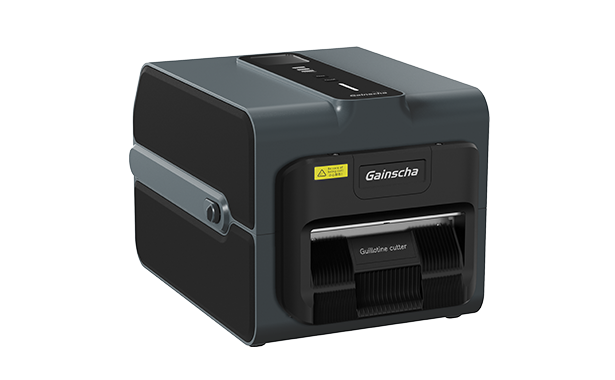

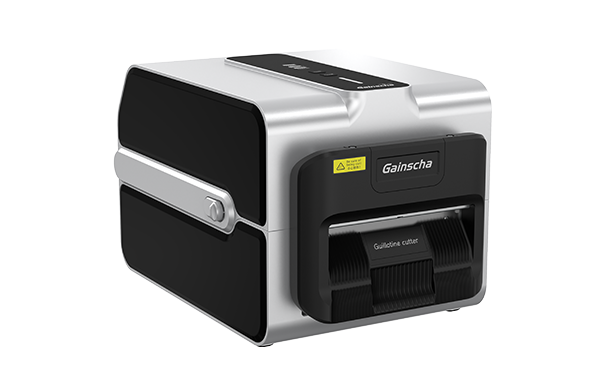

  • Guillotine cutter
  • Peeler

• Sensors

  • Head open sensor
  • Ribbon end sensor
  • Reflective sensor (moveable)
  • Transmissive sensor (moveable)

• Power

  External universal switching power supply
  Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W

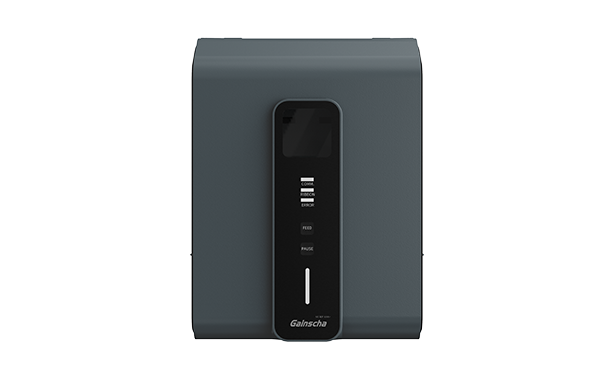

• User Interface

  • 1 power switch
  • 2 buttons (Feed & Pause)
  • 4 LEDs (Online, Error, Ribbon status, Communication)

• Internal fonts

  • 8 alpha-numeric bitmap fonts
  • True type font engine (need download scalable font file)

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix

• Rotation

  Font and barcode support 0, 90, 180, 270 degree

• Printer language

  Compatible to TSPL, EPL, EPL 2, ZPL, ZPL II,DPL

• Ribbon

  300 M long, max. OD 67 mm, 1" core (ink coated outside)

• Ribbon width

  30 mm~110 mm (1.18"~4.3")

• Media type

  Continuous, die-cut, black mark, fan-fold, notched (outside wound)

• Media width

  20~117 mm (0.7"~4.6")

• Media thickness

  0.055~0.19 mm (2.16~7.4 mil)

• Media core diameter

  25.4 mm (1")

• Label roll capacity

  127 mm (5") OD

• Label length

  GS-2406T PLUS: 5~2,794mm(0.2"~110")
  GS-3405T PIUS: 5~1‚016mm

• Physical dimension

  280mm(D) x 200mm(W) x 182mm(H)

• Net Weight

  2.5kg

• Enclosure

  ABS plastic

• Safety regulation

  FCC Class A, CE Class A, CCC, BIS, CB

• Environment condition

  Comply with RoHS, REACH, WEEE

• Environmental concern

  Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
  Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

• Accessories

  • Windows labeling software CD disk
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply
  • 1" ribbon spindle x 2 for 300M ribbon
